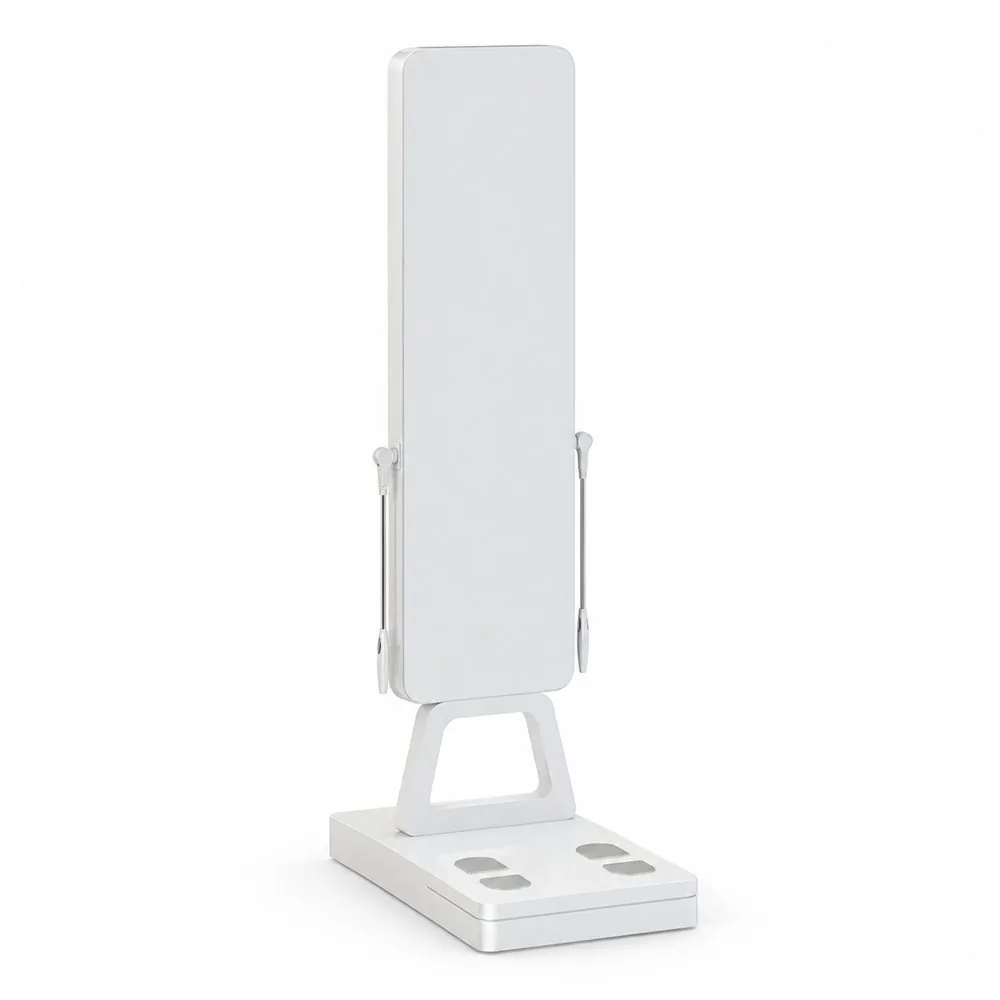

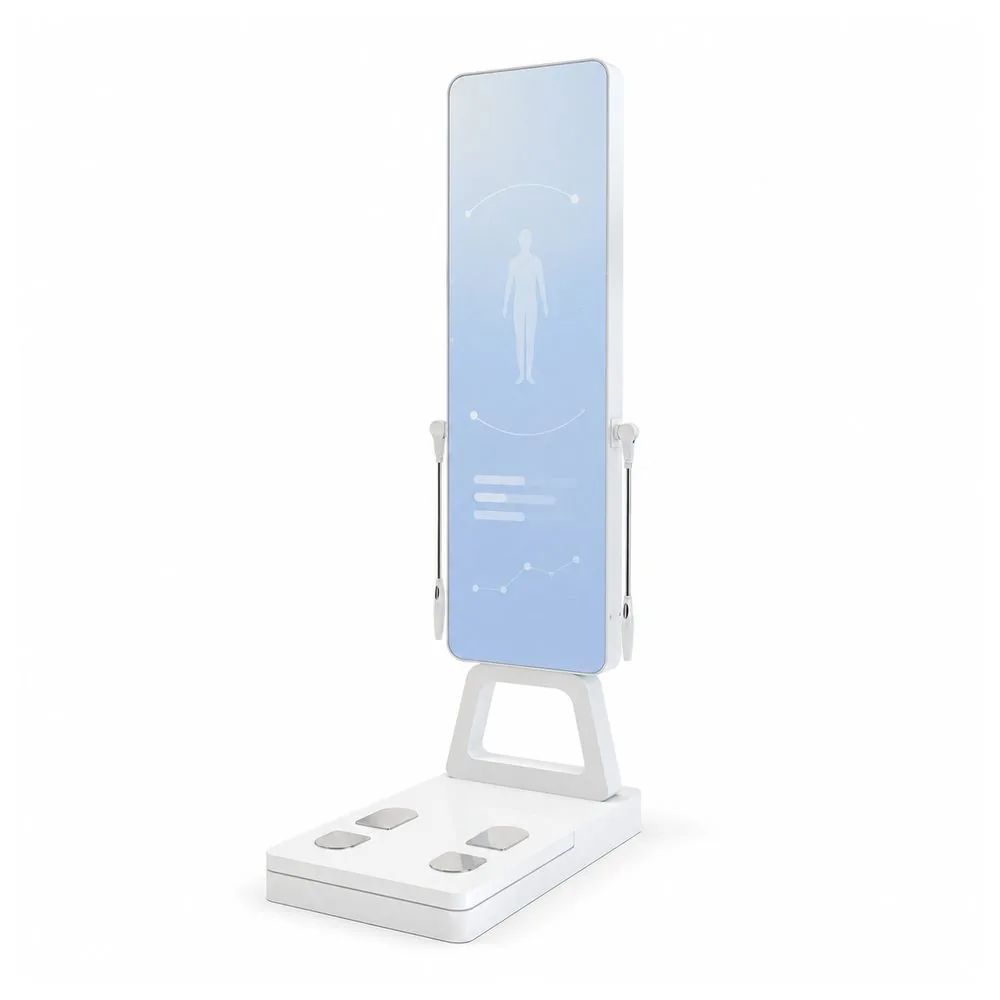

Body Composition Analyzer (TL870)

Smart multi-frequency BIA body composition analyzer TL870 with LCD touchscreen: 21-item body composition analysis, 8-item auto body measurement and 5-item posture risk assessment for gyms, weight-management studios and corporate wellness programs.

Specifications

Power Supply	Input: AC 220 V, 50/60Hz; Output: DC 12 V, 5 A
Connectivity	USB 3.0 / Bluetooth / Wired / Wireless
Height Range / Weight Range	Height: 100-200 cm; Weight: 0-250 kg
Storage Environment	Temperature: -20 to 70 °C; ambient humidity not exceeding 95%
Operating Environment	Internet connection required. Temperature: 10-40 °C; humidity: 30%-75%. Do not place the device near windows or under direct sunlight; keep the screen away from strong direct light; rough handling or impacts are strictly prohibited.
Measured Items	Body weight, BMI, body fat percentage, skeletal muscle mass, mineral content, subcutaneous fat, visceral fat, protein, body water, body fat mass, bone minerals, segmental fat, segmental muscle, biological age, posture assessment, basal metabolic rate, ideal body weight, weight management advice, posture risk assessment, shoulder asymmetry, X- or O-shaped legs, anterior pelvic tilt, head tilt, forward head posture, body circumference measurements, head-to-body ratio, upper body length, lower body length, thigh length, calf length, shoulder width, arm span, distance between occiput and shoulders
Measurement Method	8-electrode contact measurement, multi-frequency bioelectrical impedance analysis technology
Network Support	Compatible with wired and wireless networks
Measurement Frequencies	5, 20, 50, 100, 250 kHz
Detection Current	Not exceeding 280 μA
Total Power Consumption	60 W
Report Type	A4 printed reports; mobile H5 viewing; email notifications; access via backend management system

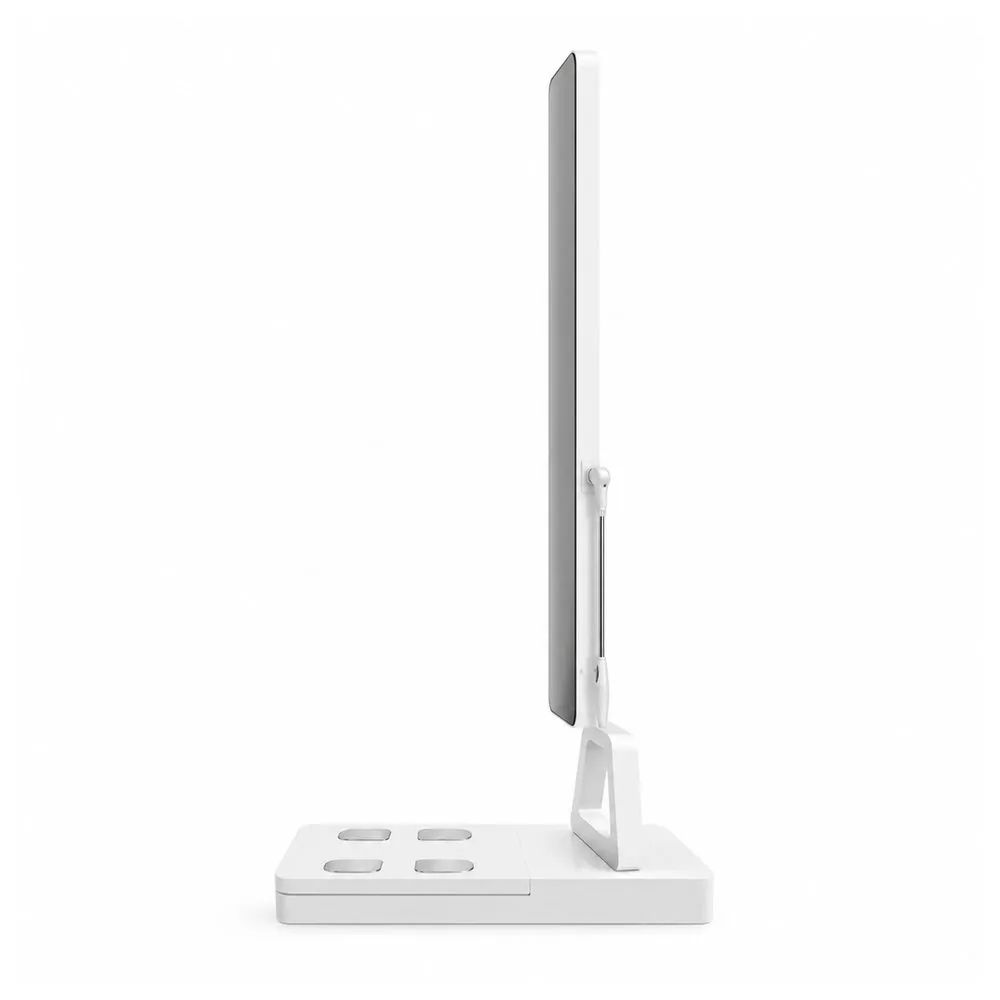

Machine Dimensions	H 1650 mm × W 400 mm × L 830 mm
Net Weight	60 kg
Packaging Dimensions	Main unit: 1800 mm (L) × 190 mm (W) × 585 mm (H); Base: 945 mm (L) × 190 mm (W) × 525 mm (H)

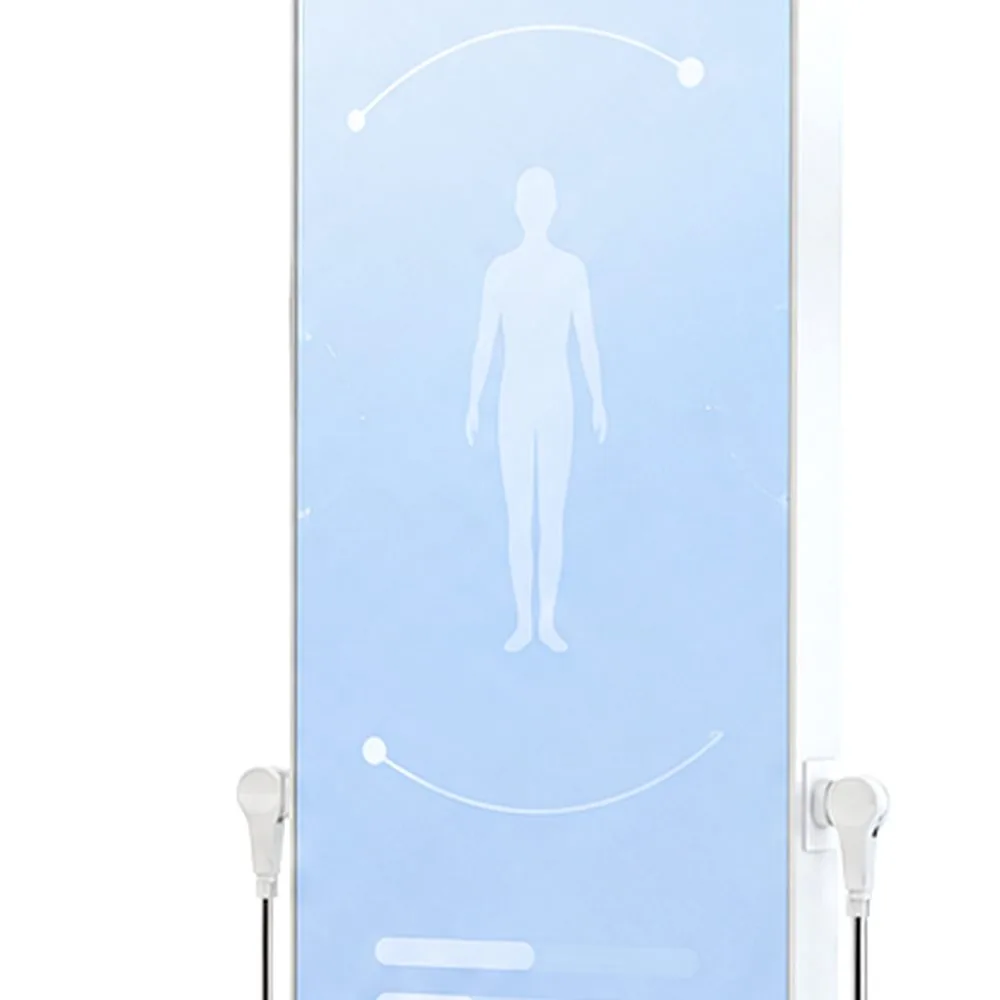

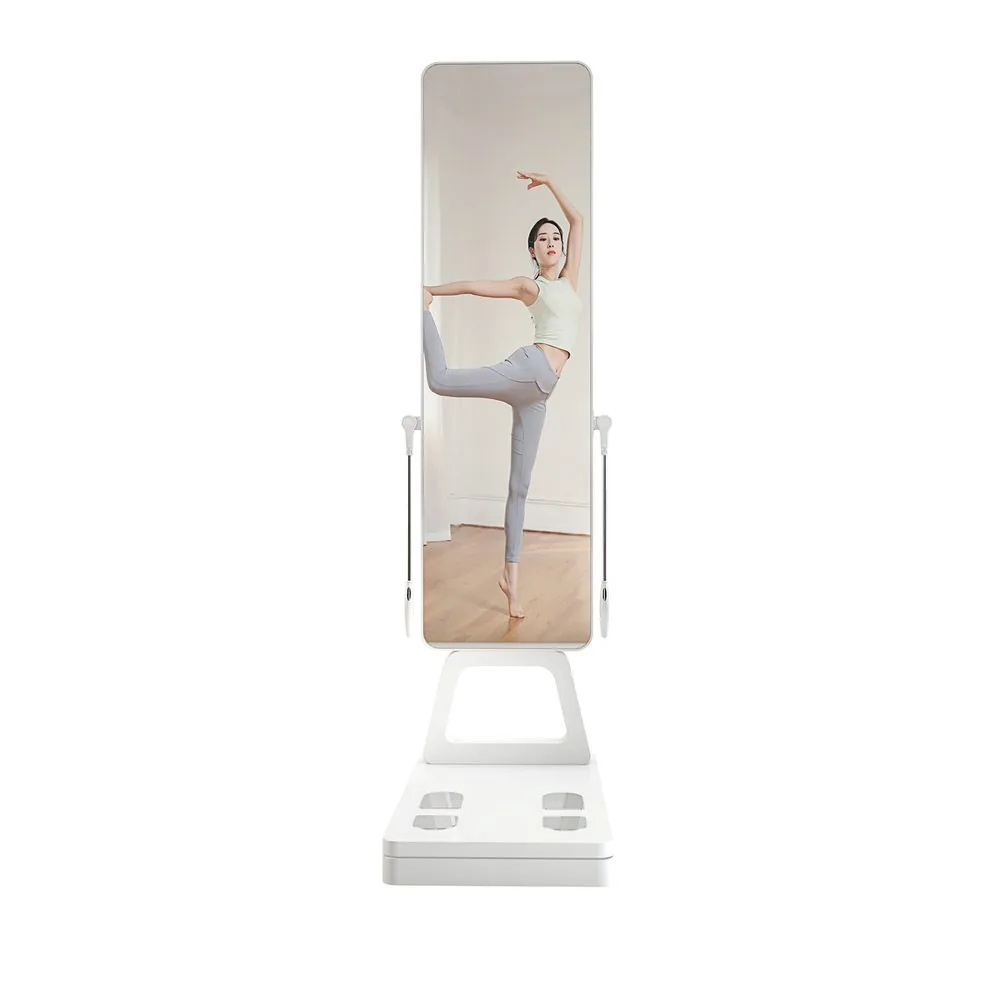

Display	1920 × 1080 resolution IPS HD capacitive touchscreen

Product Overview

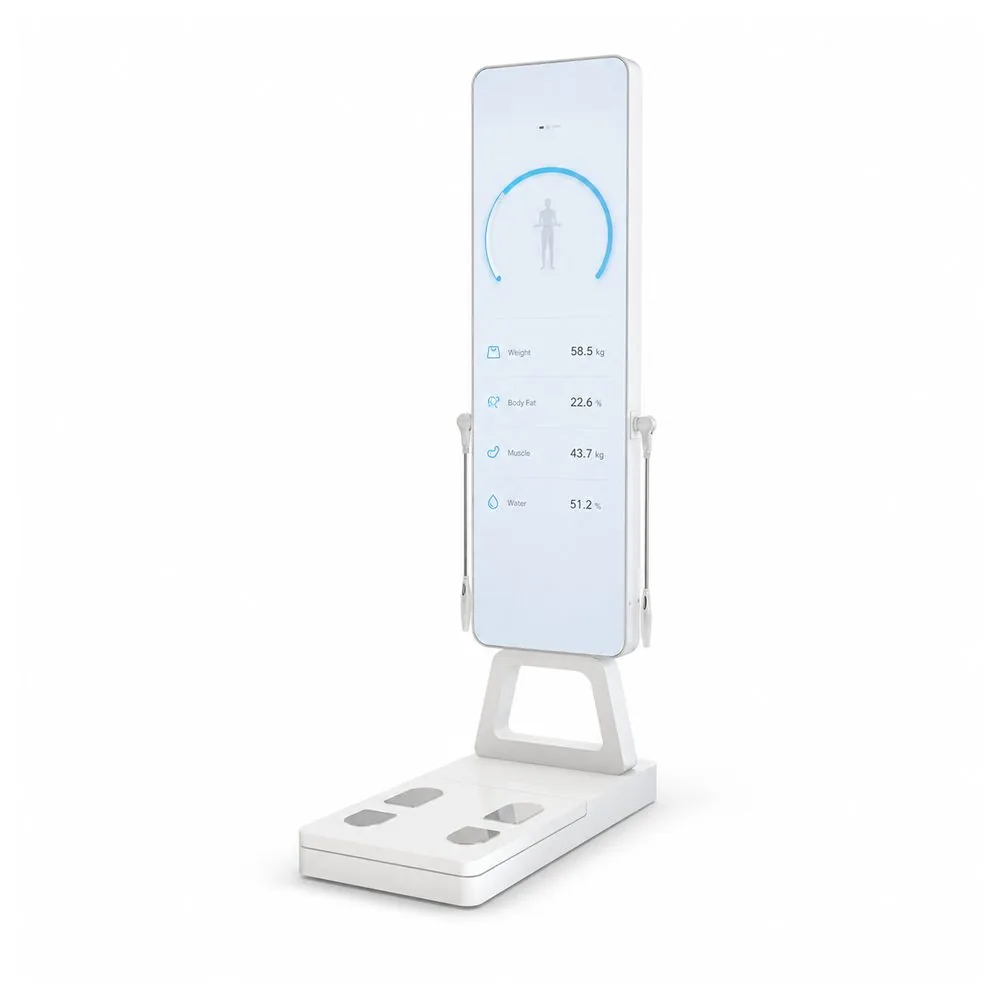

The TL870 is a smart multi-frequency BIA body composition analyzer designed for commercial gyms, weight-management studios, corporate wellness programs and health assessment zones. Combining an imported smart sensor chip, high-definition LCD touchscreen and high-quality tempered glass panel with an ergonomic standing measurement experience, it turns every test into a clear, professional health report that builds member trust and loyalty.

Key Features

21-item body composition analysis covering fat mass, muscle mass, body water and basal metabolism — the complete baseline in one measurement.
8-item body measurement auto-assessment plus 5-item posture risk assessment for a comprehensive physical overview.

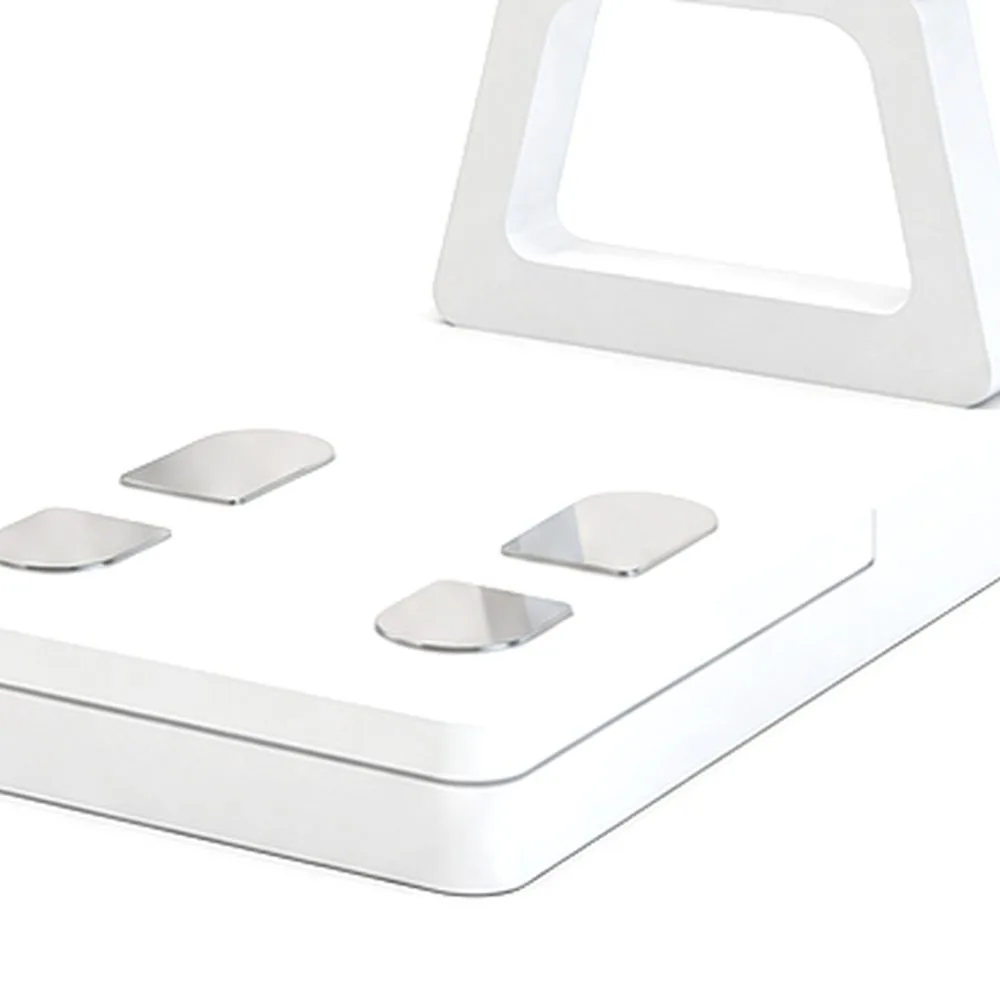

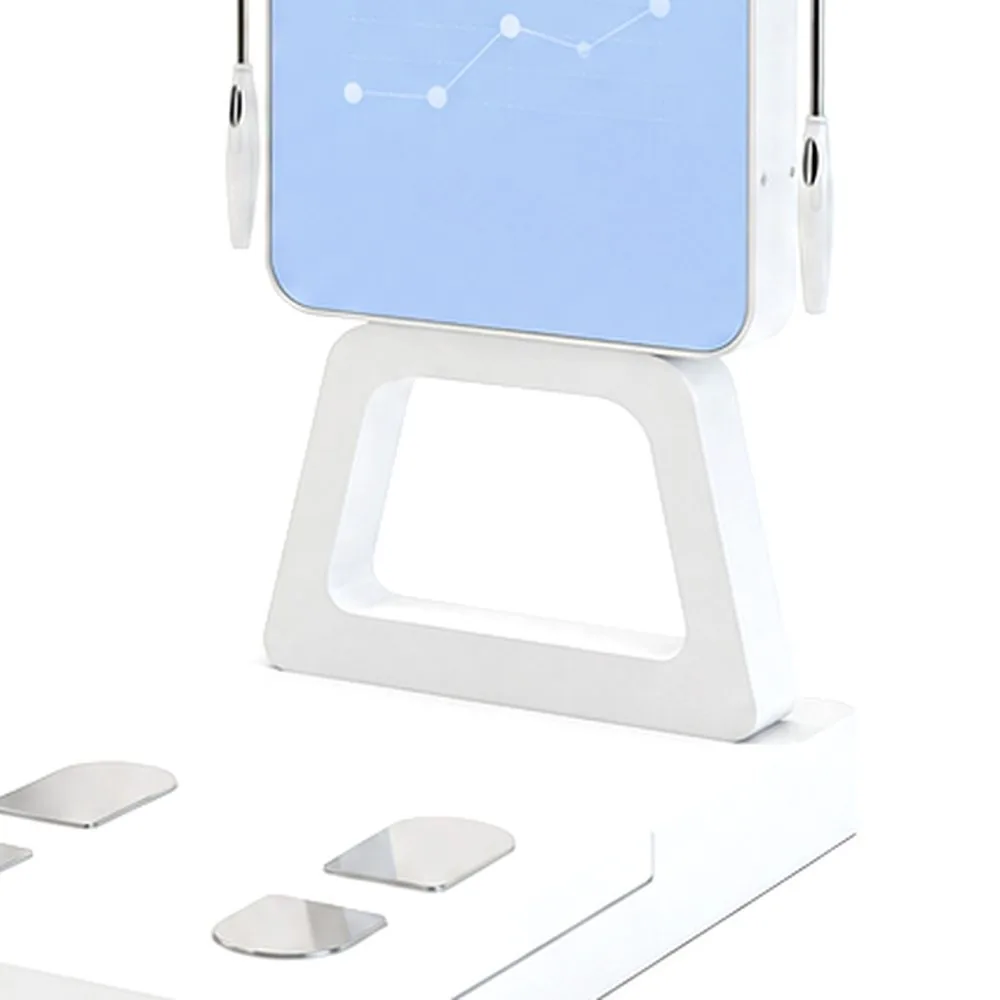

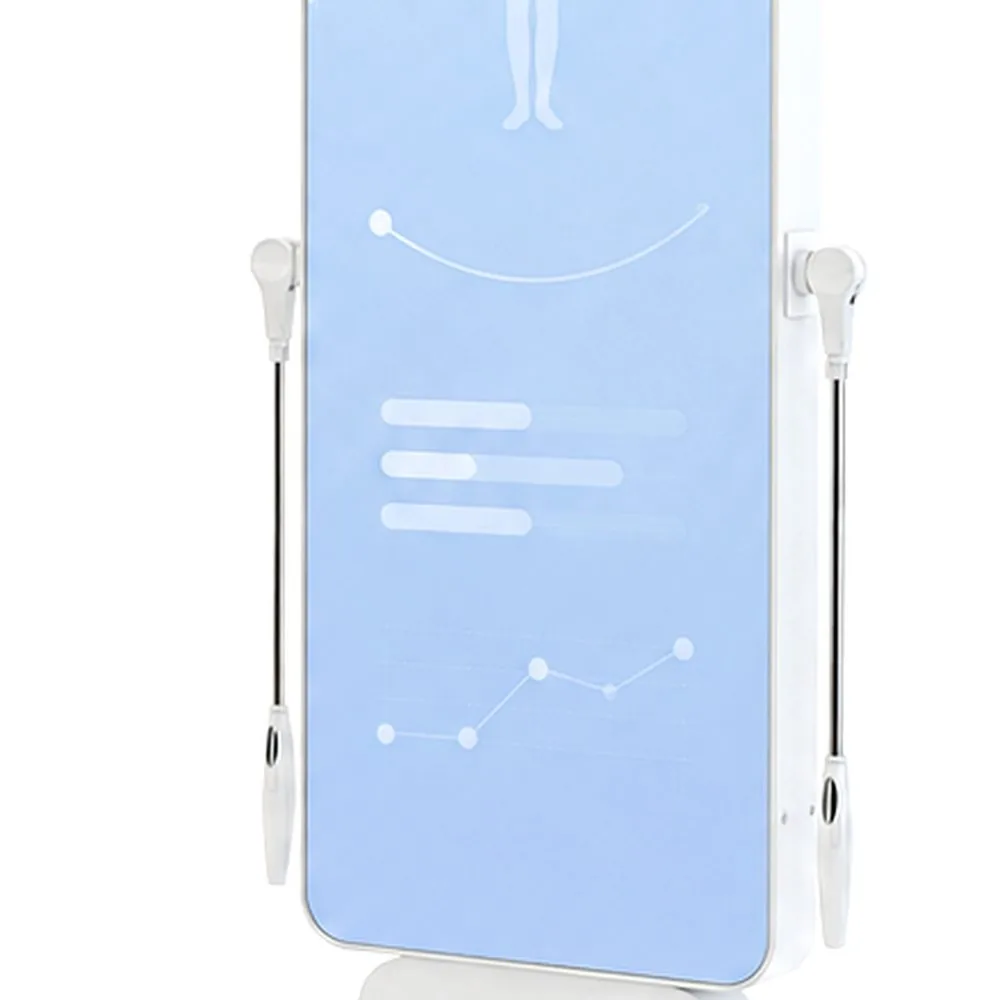

8-electrode multi-frequency BIA technology with hand electrodes and four foot electrodes for accurate full-body readings.
Imported smart sensor chip with an integrated industrial aesthetic shell and high-quality tempered glass panel.
Full-coverage support platform and 3D human body core module improve measurement consistency and accuracy.
Smart connectivity: multi-device synchronization, secure cloud data storage, sensitive voice interaction and online upgrades for continuous evolution.
Flexible reporting: A4 printed reports, mobile H5 viewing, email notifications and backend management system access.

Applications

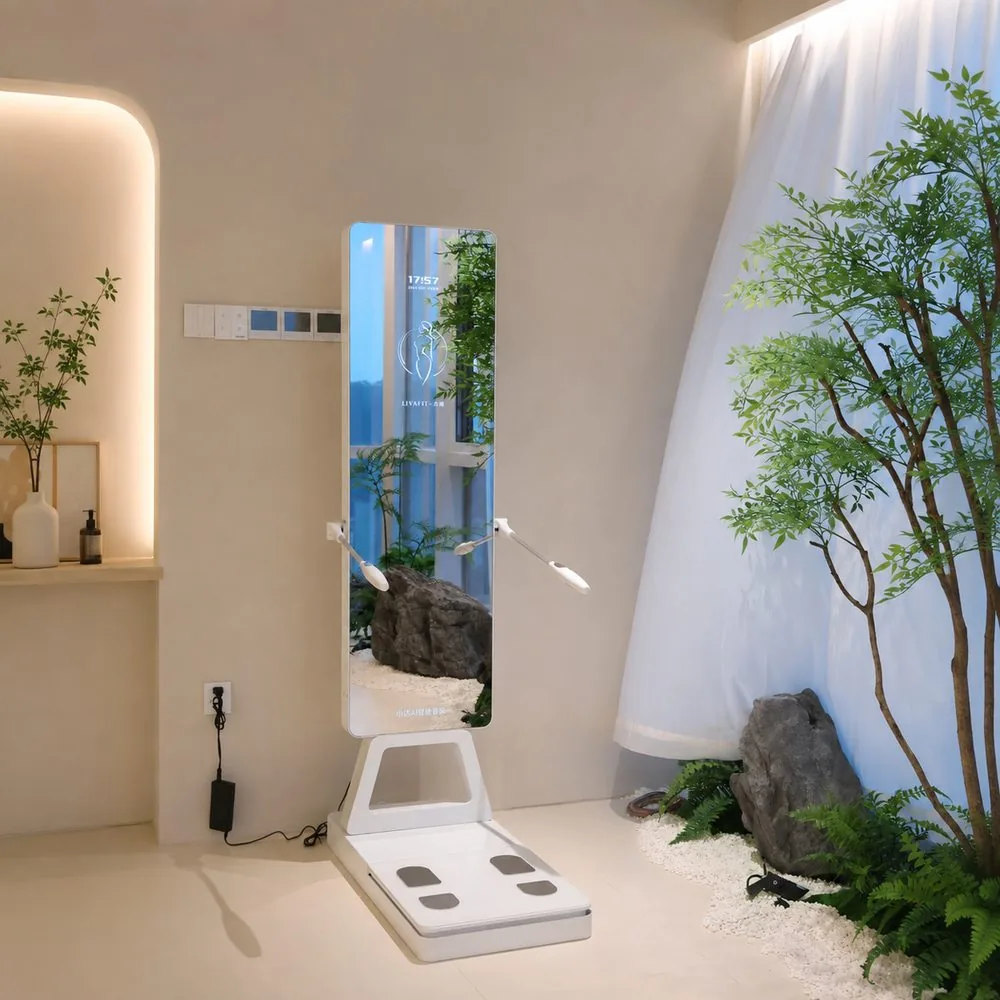

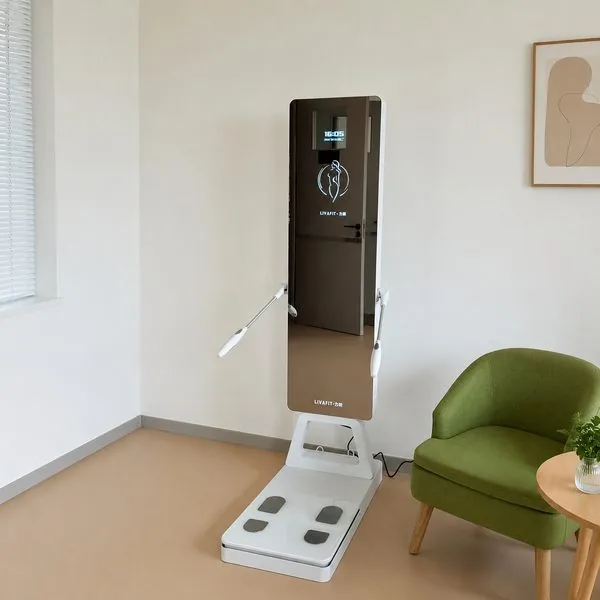

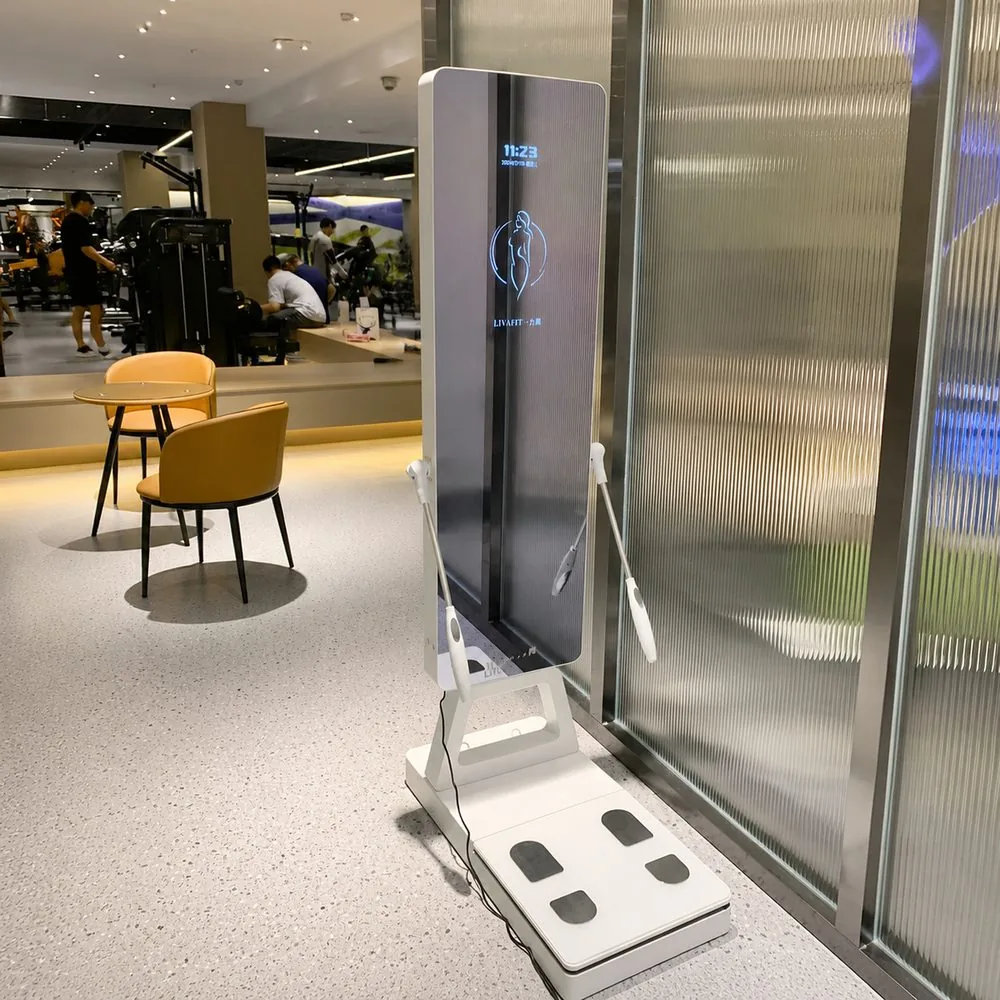

Gym member body composition testing areas
Health management and weight-management studios
Corporate employee health service stations
Health and beauty spas
Sports training and body recovery rooms
