Body Composition Analyzer (TL880)

Professional-grade multi-frequency BIA body composition analyzer TL880 with 360° rotating platform: 21-item body composition analysis, 8-item posture risk assessment and 14-item auto body measurement for commercial gyms, recovery centers and health assessment studios.

Specifications

Power Supply	Input: AC 220V, 50/60Hz; Output: DC 12V, 5A
Connectivity	USB 3.0 / Bluetooth / Wired / Wireless
Height Input Range / Weight Measurement Range	Height: 100-200 cm; Weight: 0-250 kg
Storage Environment	Temperature: -20 °C to 70 °C; ambient humidity not exceeding 95%
Operating Environment	Internet connection required. Temperature: 10 °C to 40 °C; humidity: 30%-75%. Do not place the device near windows or under direct sunlight; keep the screen away from strong direct light; strong impacts are strictly prohibited.
Measured Items	Body weight, BMI, body fat percentage, skeletal muscle mass, mineral content, subcutaneous fat, visceral fat, protein, body water, total fat, segmental fat, segmental muscle, biological age, body composition assessment, basal metabolic rate, ideal body weight, weight management advice, posture risk assessment, shoulder asymmetry, cervical lateral tilt, forward head posture, round shoulders, X- or O-shaped legs, anterior pelvic tilt, pelvic tilt, knee hyperextension, head-to-body ratio, shoulder width, arm span, left upper arm circumference, right upper arm circumference, chest circumference, waist circumference, hip circumference, left thigh circumference, right thigh circumference, upper body length, lower body length, thigh length, calf length
Measurement Method	8-point contact electrodes, multi-frequency bioelectrical impedance analysis technology
Network Support	Compatible with wired and wireless networks
Measurement Frequencies	5, 20, 50, 100, 250 kHz
Detection Current	Not exceeding 280 μA
Total Power Consumption	60 W
Report Type	A4 printed reports; H5 viewing on mobile devices; email notifications; access via backend management system
Machine Dimensions	H 1650 mm × W 680 mm × L 2100 mm
Net Weight	65 kg
Packaging Dimensions	Main unit: 1830 mm (L) × 230 mm (W) × 610 mm (H); Base: 945 mm (L) × 190 mm (W) × 525 mm (H); Rotating platform: 700 mm (L) × 700 mm (W) × 125 mm (H)
Display	1920×1080 resolution IPS HD capacitive touchscreen

Product Overview

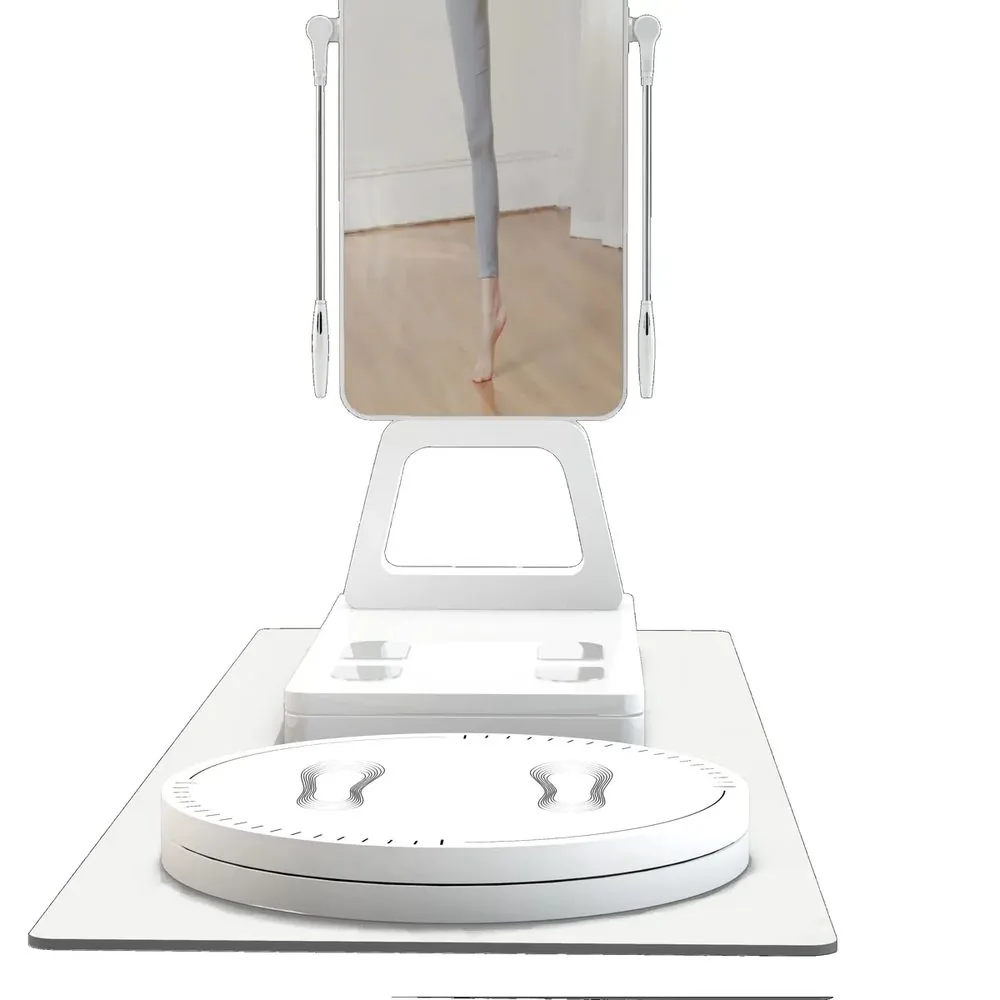

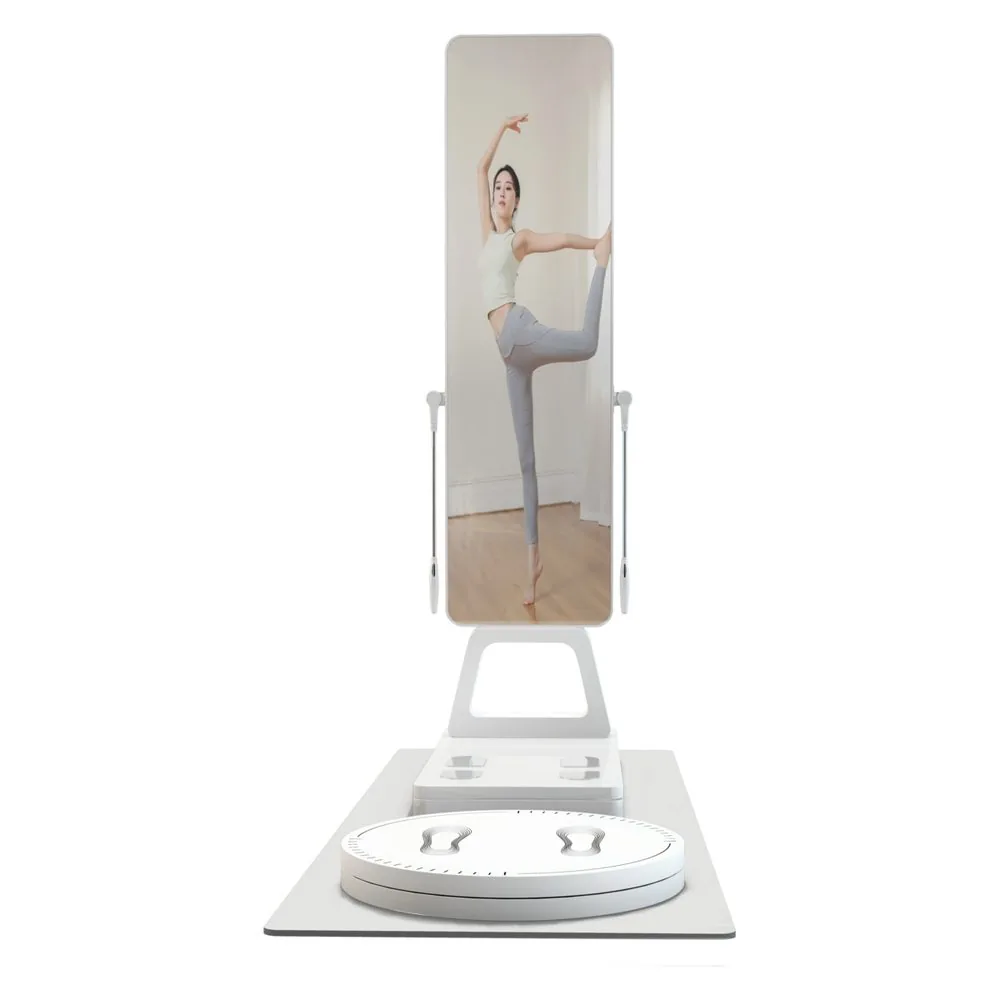

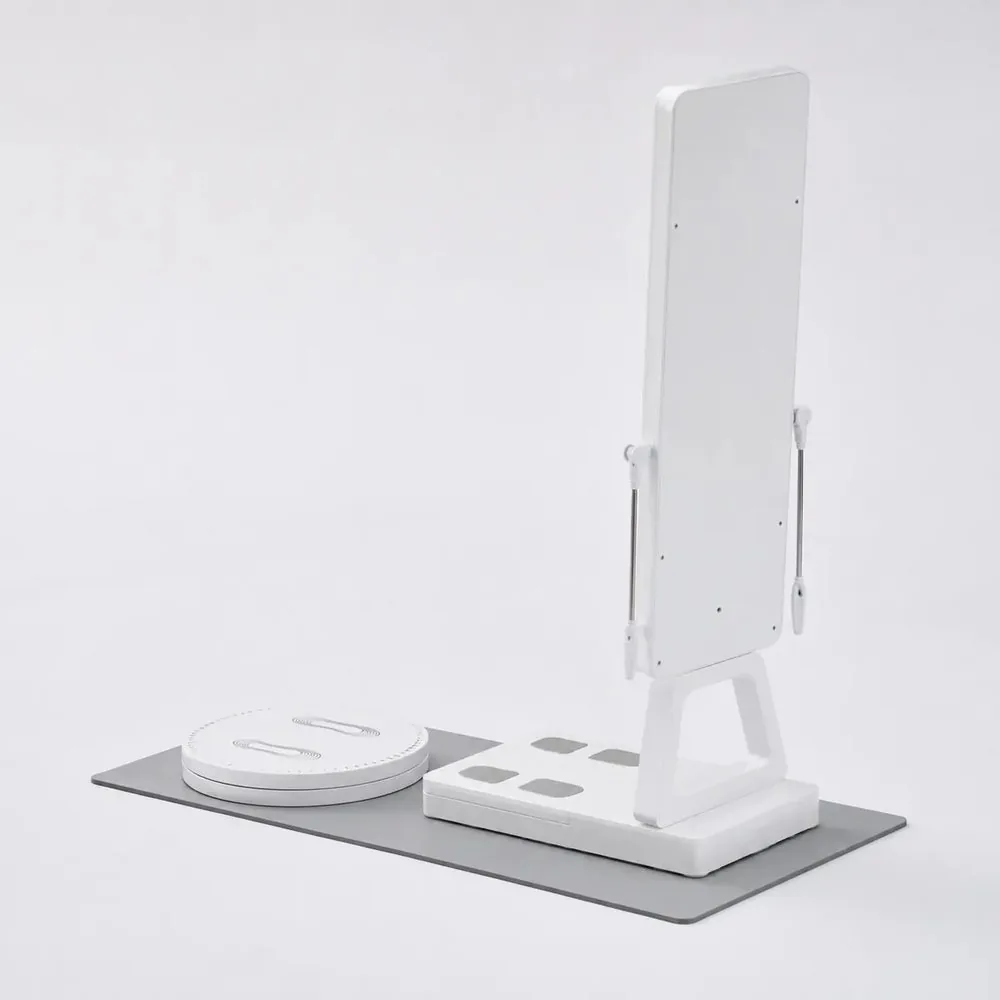

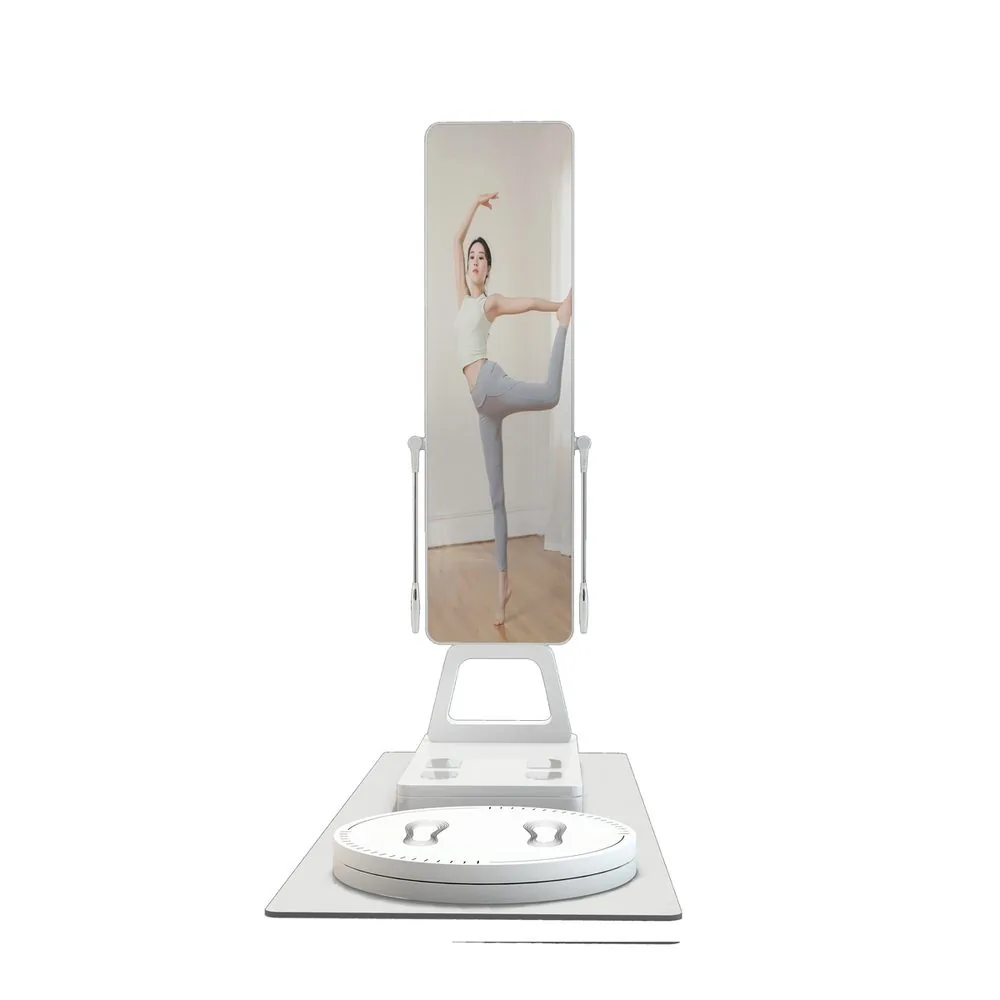

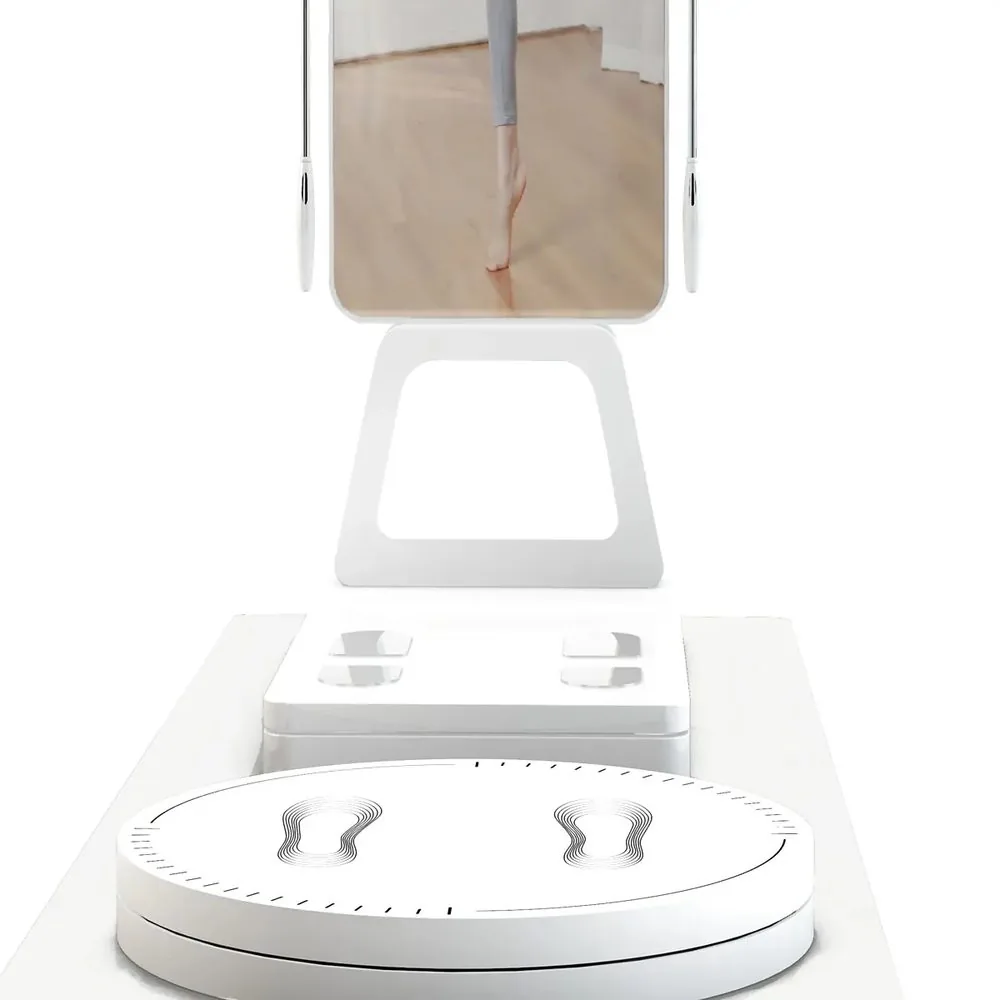

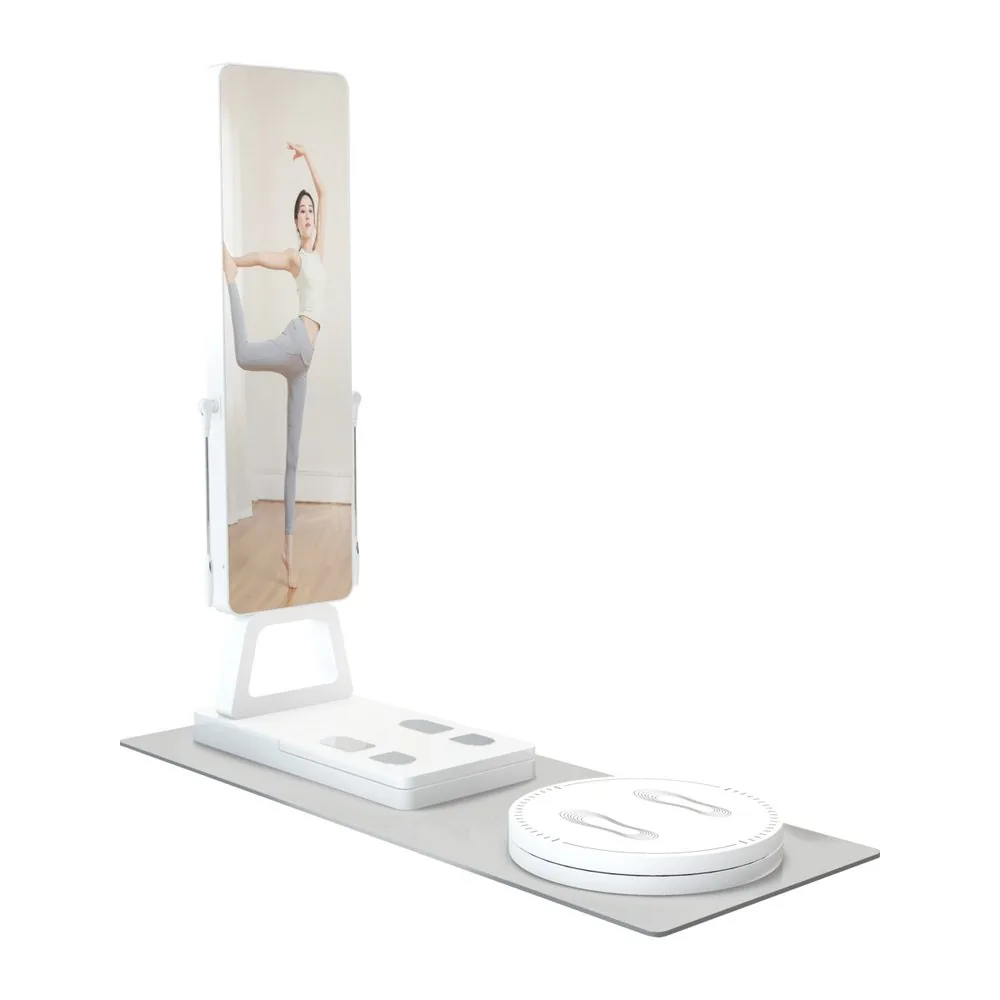

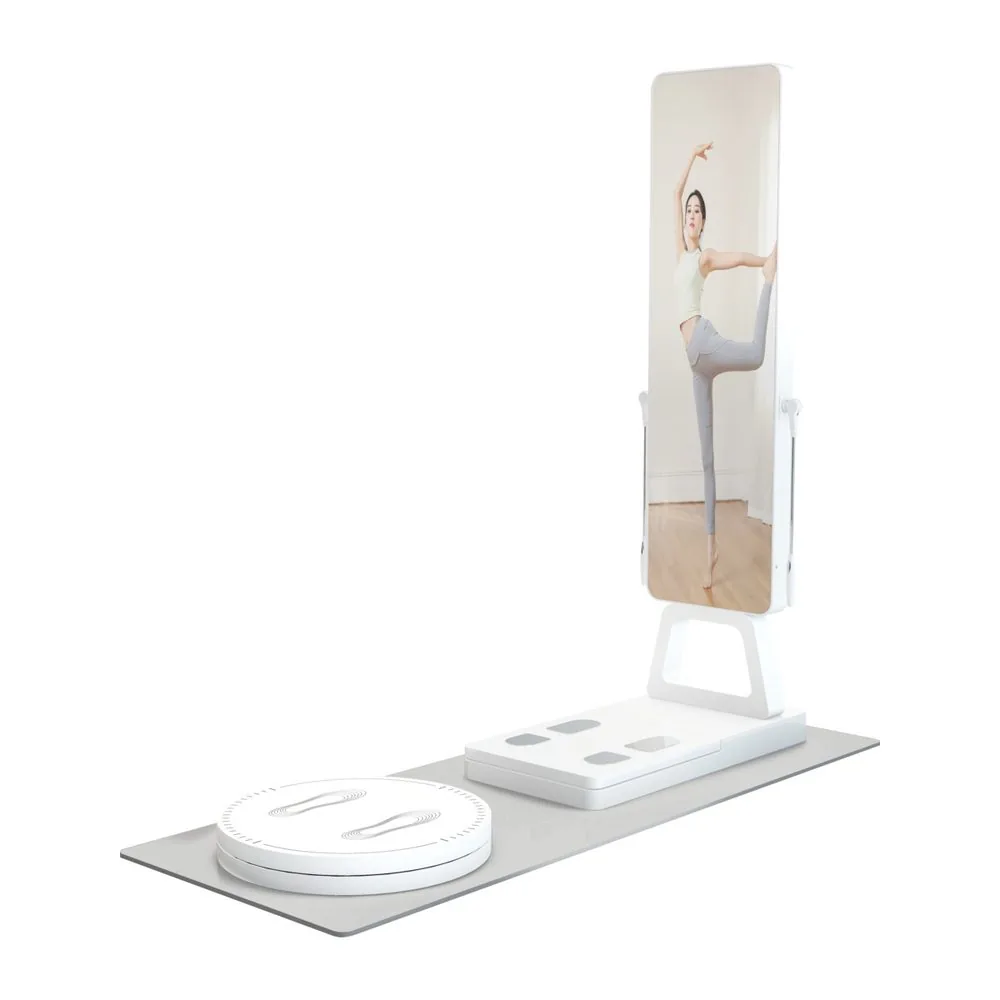

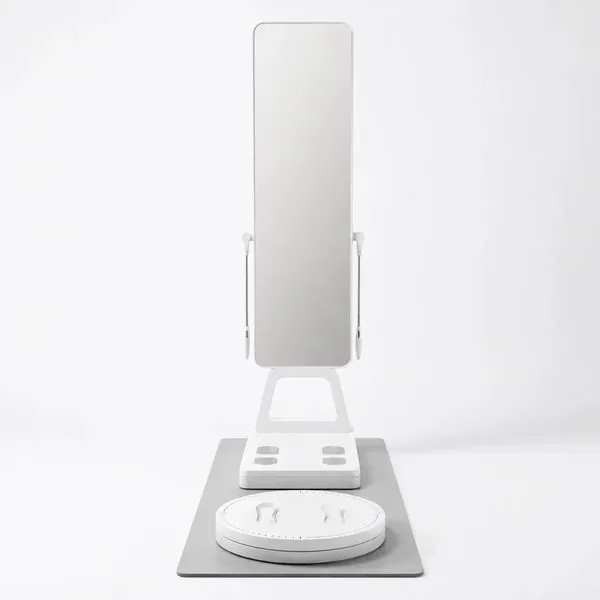

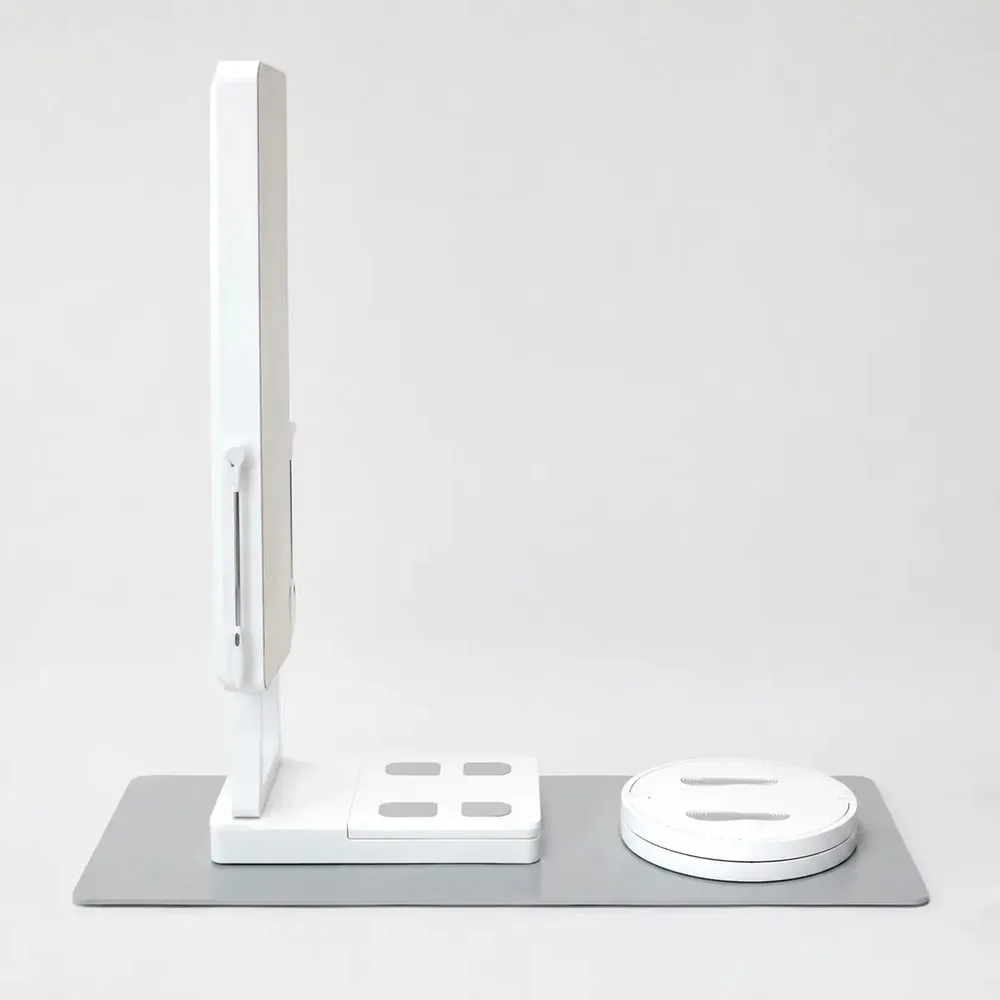

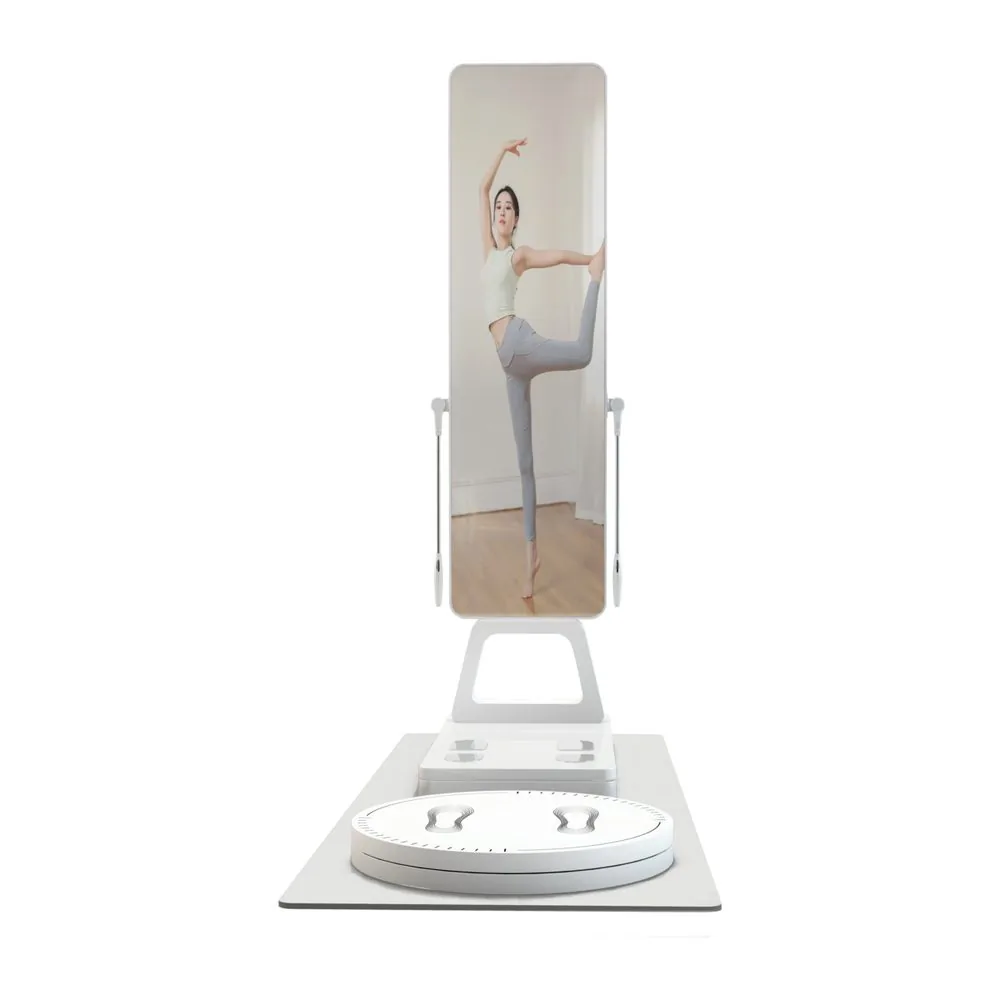

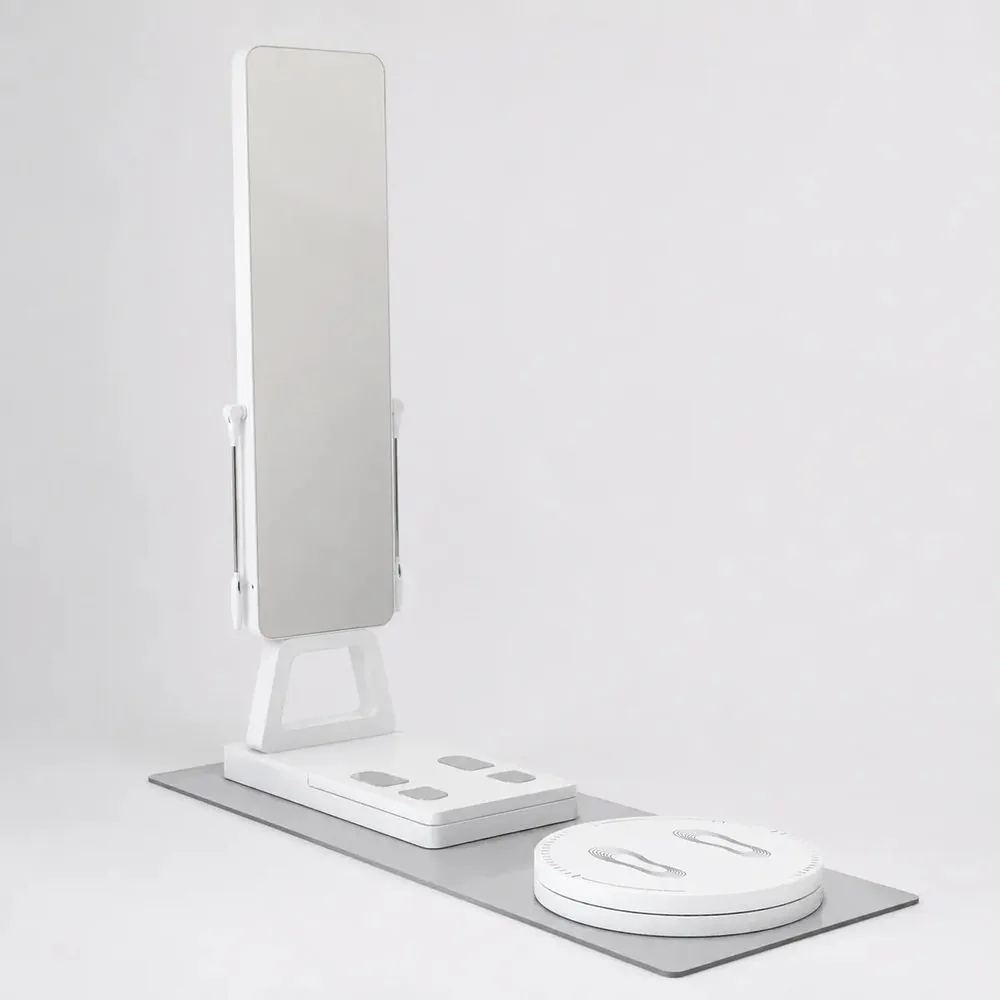

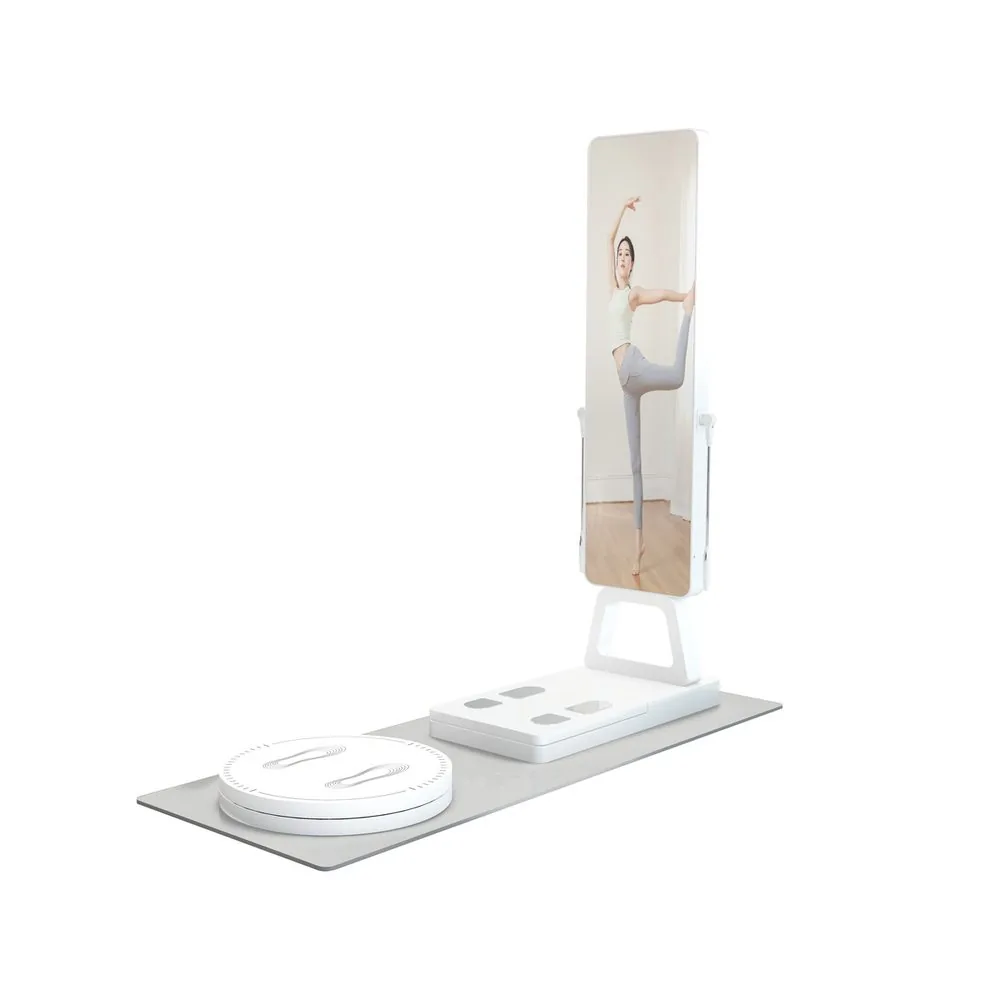

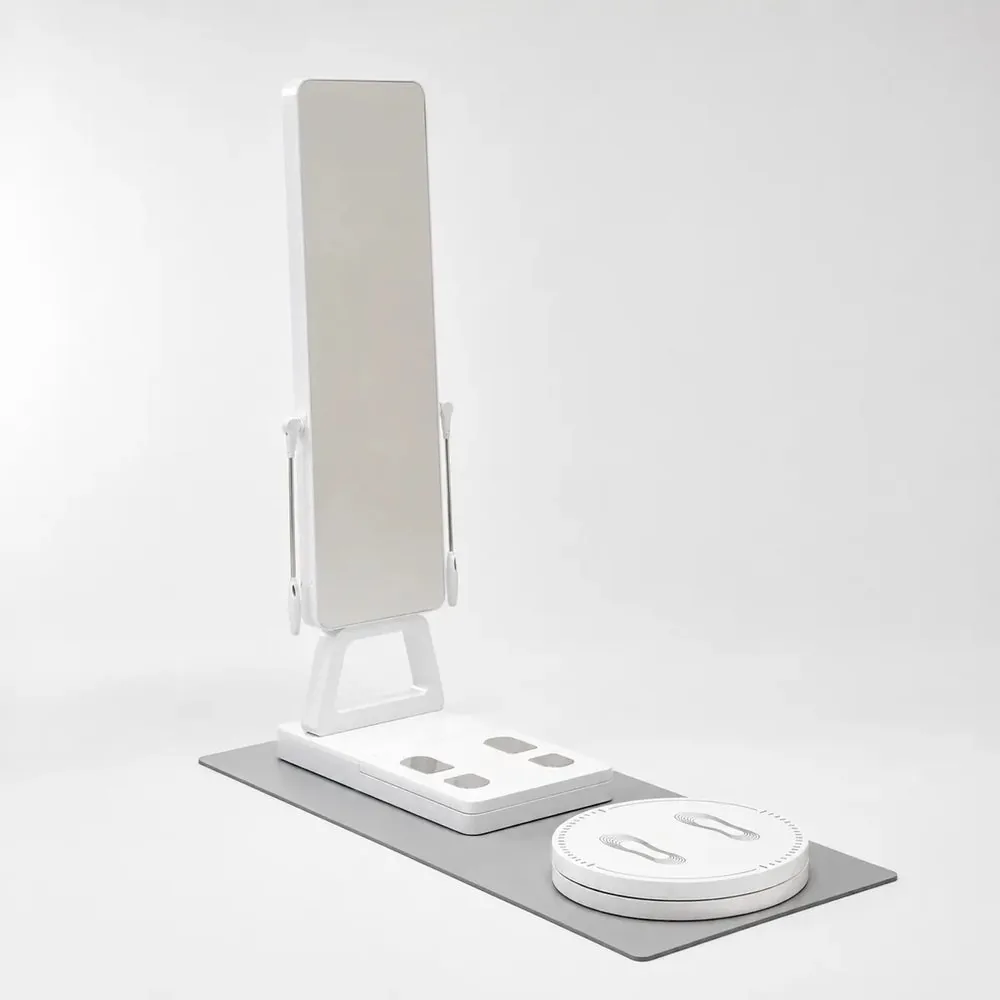

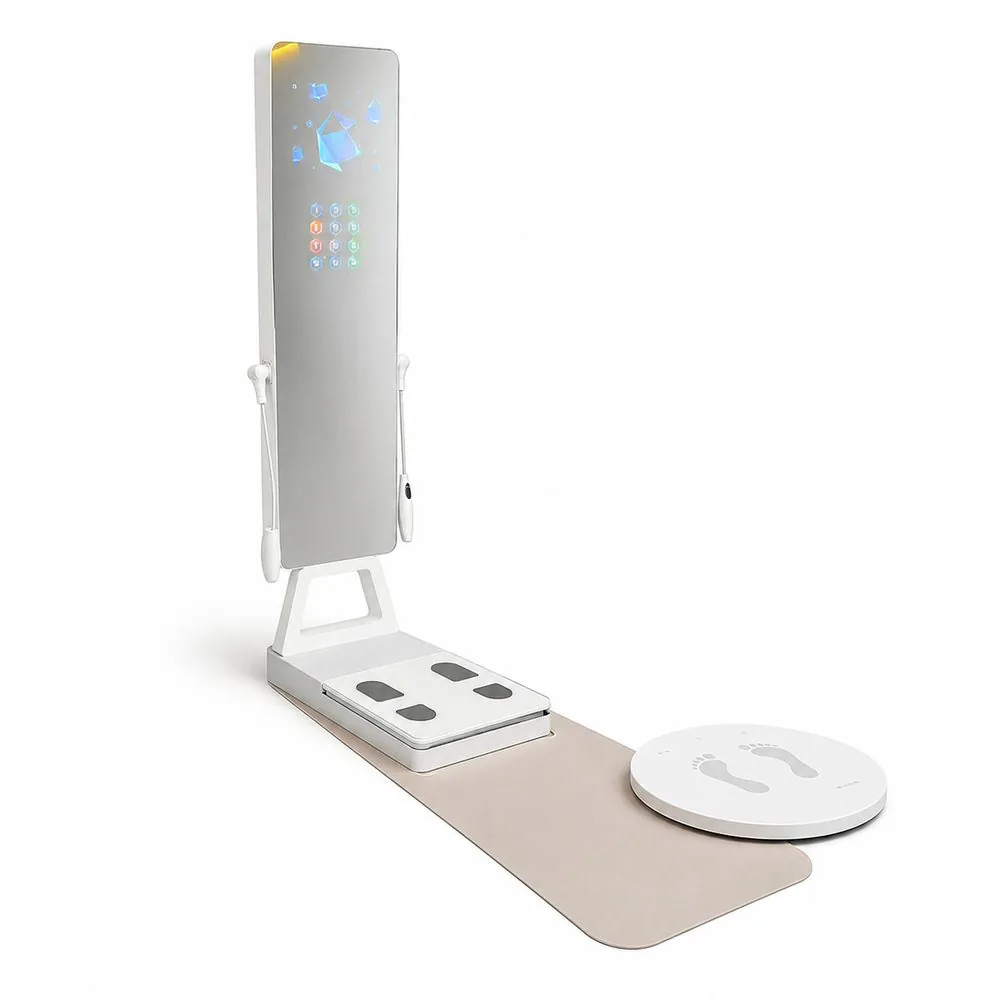

The TL880 is a professional-grade multi-frequency BIA body composition analyzer engineered for commercial gyms, health assessment centers and sports medicine facilities. Built around an independent 360° automatic rotating platform, it combines a high-brightness LCD touchscreen, 3D posture capture module and integrated industrial-grade footplate into one professional assessment station — delivering fast, repeatable and insight-rich body composition data for every member.

Key Features

21-item body composition analysis: fat mass, muscle mass, body water, basal metabolism and more — all measured in a single scan.
Professional-grade BIA impedance measurement: multi-frequency technology delivers stable, professional-grade readings.
14-item body measurement auto-assessment plus 8-item posture risk assessment for complete physical screening beyond simple body composition.

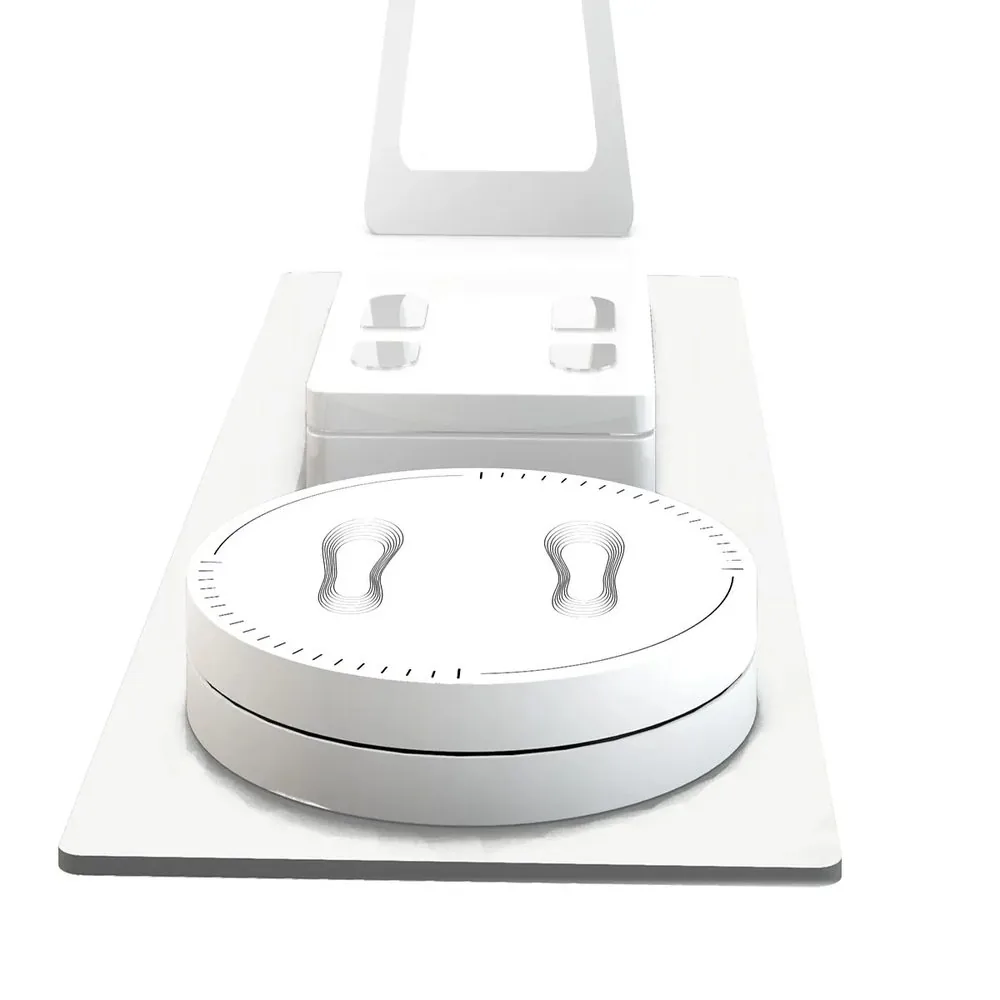

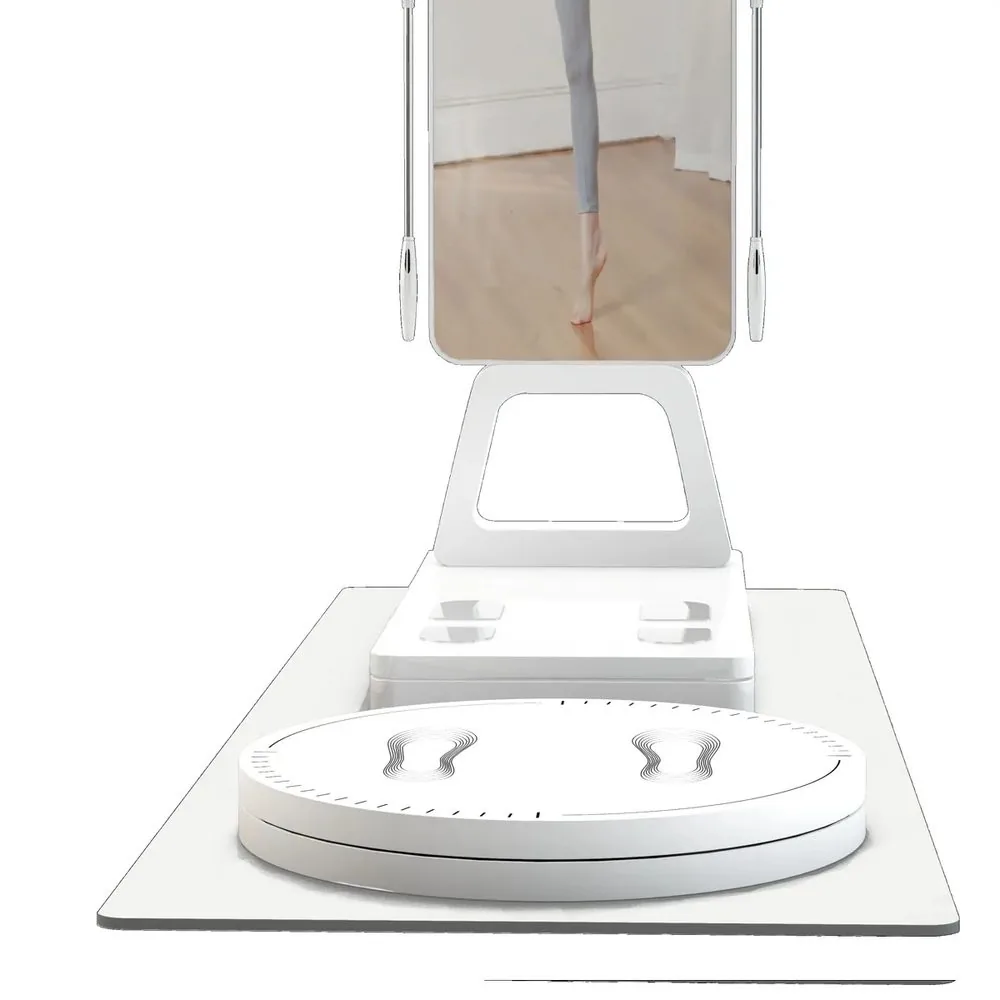

360° automatic rotation and 3D posture capture module support full-body shape and movement evaluation.

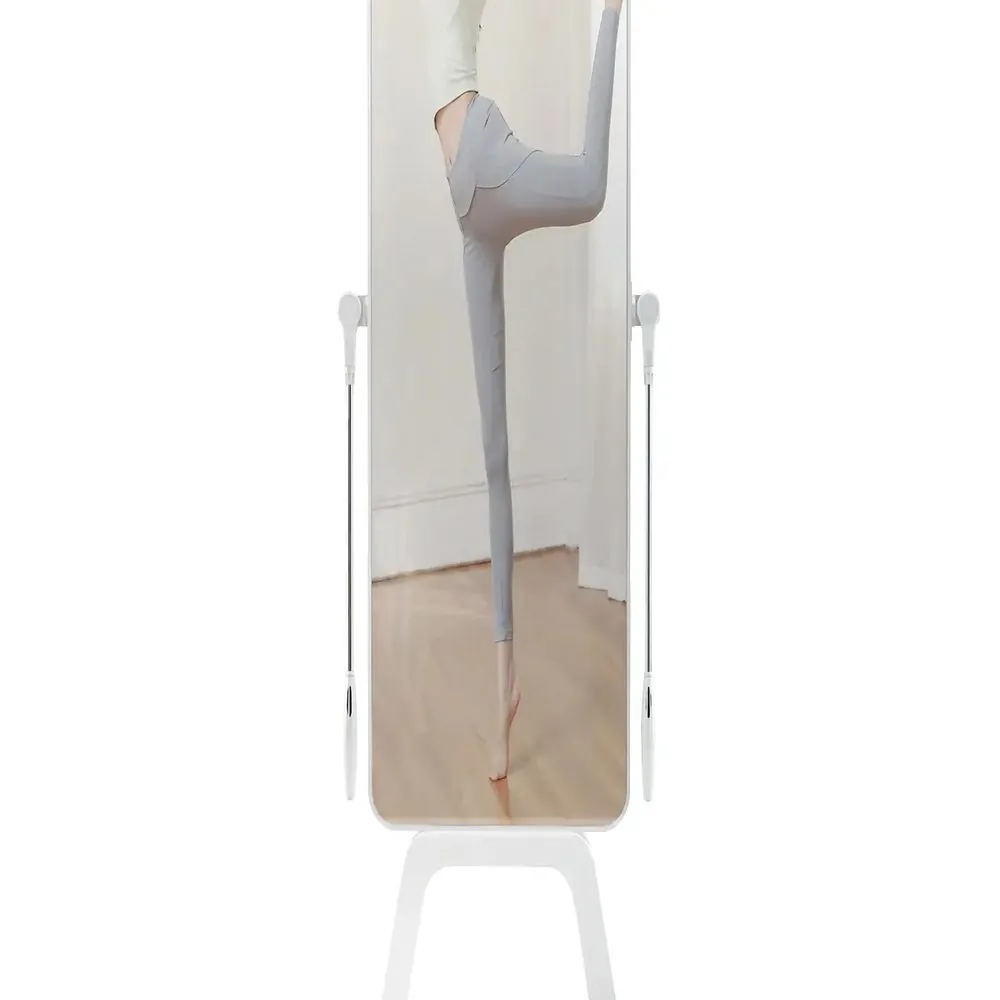

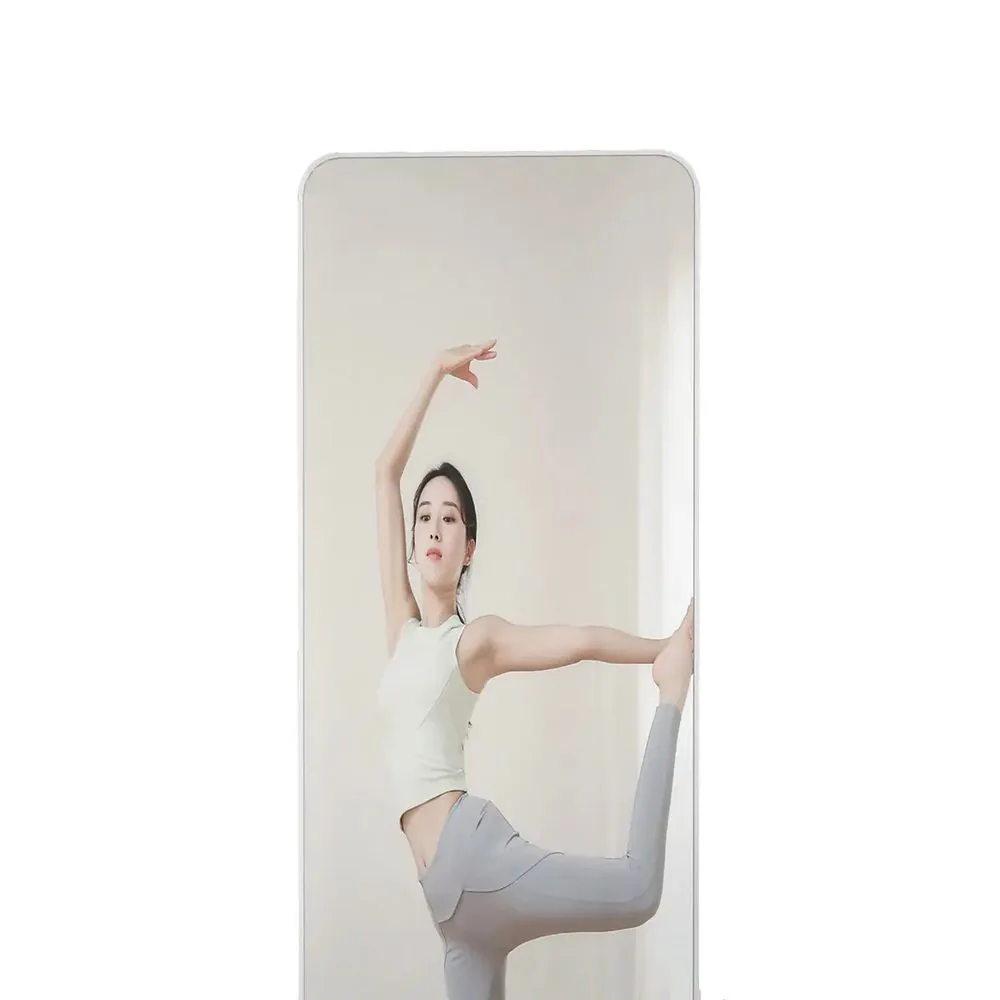

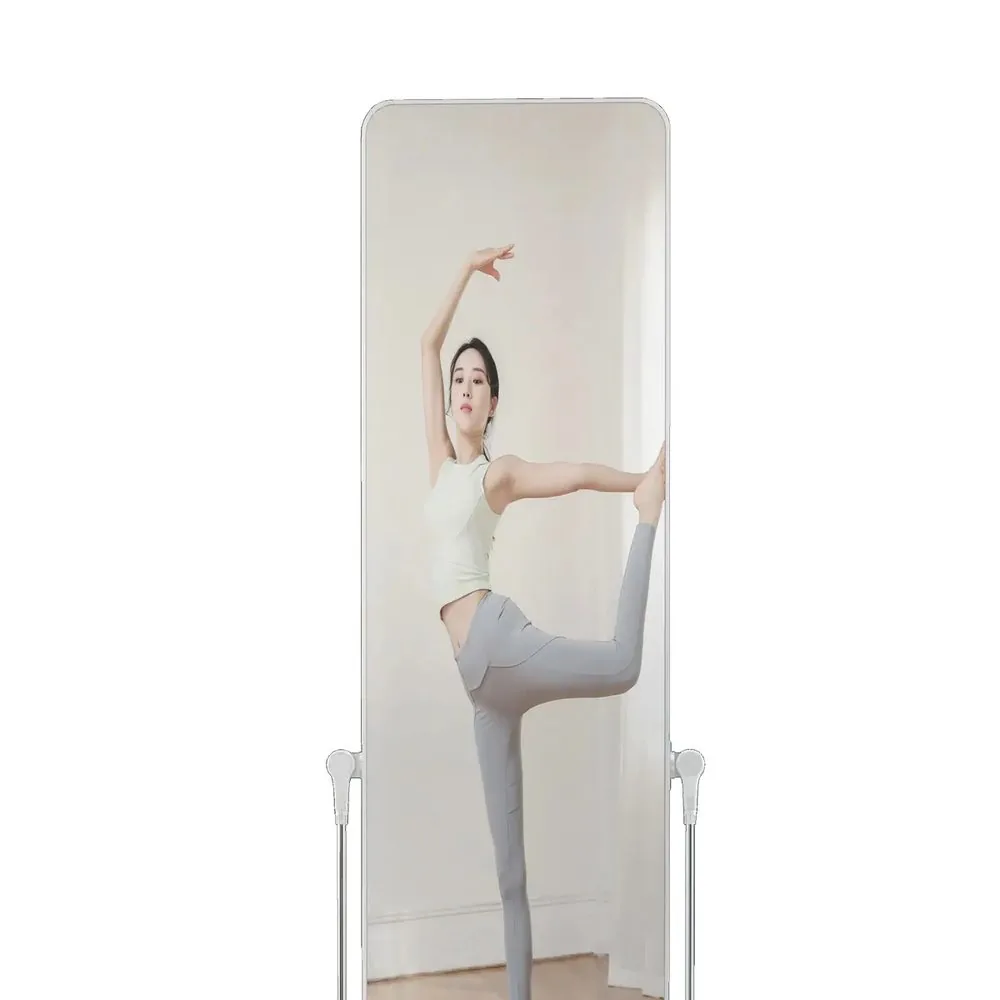

High-brightness LCD touchscreen with tempered glass for effortless operator and member interaction.
Seven cutting-edge exterior designs combine industrial aesthetics with premium build quality for a high-end studio image.
Smart connectivity: multi-device synchronization, secure cloud data storage, face recognition with seamless system integration, and online upgrades for continuous evolution.
Flexible reporting: A4 printed reports, mobile H5 viewing, email notifications and backend management system access.

Applications

Commercial gyms and fitness clubs
Health assessment and body management centers
Sports training and body management facilities
Body management and wellness studios
Corporate employee health programs
